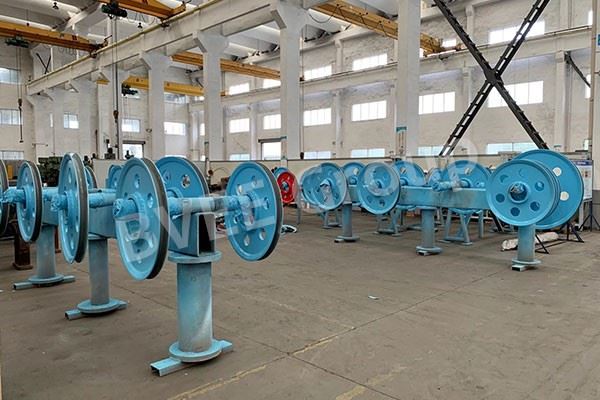

Hot Rolling Crane Sheave

BVEE kindly reminds you it's important to note that the specific advantages of a welding sheave assembly/sheave pulley blocks may vary depending on the application and the quality of the assembly itself. Consulting with a qualified engineer or manufacturer can provide further insights into the benefits for a particular use case.

Free forged or module forged

Rough machining process, to remove the surface forged oxidized black leather.

100% Ultrasonic Test ASTMA388

Heat Treatment according to request, Normalized, Quenched, Tempered.

Hardness test

Finishing Process to the dimensional state required by the drawing.

100% Magnetic Test ASTM E709 and 100% dimensional test

Painting or oil protecting TECTYL 506 or similar

Packing with wooden boxes

Material: Q235B, Q345B, 35#, 45#, 60#, SSW-QR1, S45C

Groove surface quench: HRC45-55

Groove surface quench depth: 2mm-2.5mm

groove MT after heat treatment and welding line UT and MT

Max processing diameter: 2, 000mm

Short production cycle

It is used for crane equipment, port equipment, oil drilling rig and so on.

Note: For special order, please provide drawing sample and technical details.

The welding sheave assembly offers several advantages in various applications. Here are some of its key advantages:
Load Distribution: The welding sheave assembly is designed to distribute loads evenly across multiple sheaves or pulleys. This helps to reduce stress and wear on individual components, ensuring longer service life and improved overall performance.
Efficient Power Transmission: The welding sheave assembly allows for efficient power transmission between the input and output shafts. By utilizing multiple sheaves, different ratios can be achieved, enabling speed reduction or increase as required for specific applications.
Versatility: Welding sheave assemblies can be customized to accommodate various belt sizes, shaft diameters, and load capacities. This versatility makes them suitable for a wide range of applications in industries such as manufacturing, construction, mining, and transportation.
Smooth Operation: The wire rope hoist parts typically employs high-quality bearings, which ensure smooth and reliable operation. This minimizes friction, noise, and vibration, resulting in a more comfortable and efficient working environment.
Easy Installation and Maintenance: Welding sheave assemblies are generally designed for easy installation and maintenance. They often feature modular designs that allow for quick replacement of individual sheaves or pulleys, reducing downtime and maintenance costs.
Space Efficiency: Welding sheave assemblies are compact and space-efficient, making them ideal for installations with limited space. Their compact design also allows for flexible positioning within a system, maximizing layout options.
Cost-Effective: Welding sheave assemblies offer cost-effectiveness due to their long service life, minimal maintenance requirements, and efficient power transmission capabilities. They help optimize system performance while keeping operational costs under control.


Business Type: Manufacturer and international Trading

Country / Region: Changzhou,Jiangyin China

Main Products:Hot rolling carane sheave,STS crane forging sheave;catenary trolley rope tensioner device,welding pulley assembly,main hoist sheave assembly&sheave pulley blocks, catenary crane wheels,STS Crane Trolley wheels,RTG crane wheel,wire rope sheave;trolley rail and twistlock;safty brake;Hydraulic units

Total Annual Revenue: Below US$2 Million

Year of Establishment: 2015

Certificates: ISO9001

Main Markets: South American 22%, South East 20%, Africa 10%, Middle East 28%, Europe 20%
